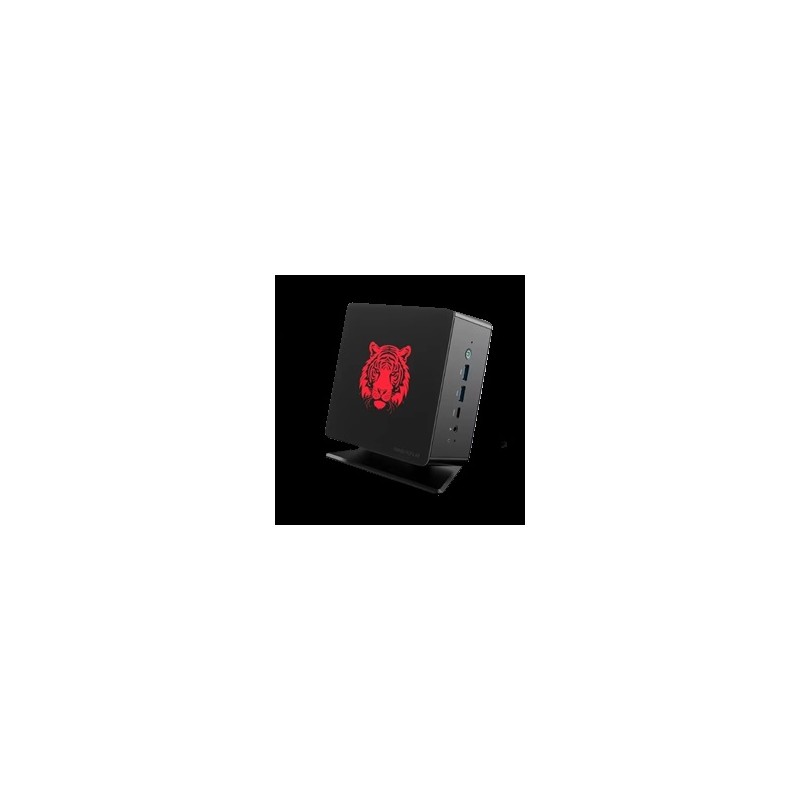

MINISFORUM EliteMini

UM890 Pro

Equipped with the AMD Ryzen™ 9 8945HS processor and the AMD Radeon 780M to unleash up to 70W of power. Supports the OCulink interface - enables an external graphics card. Boost the performance! Play the masterpiece of the 3A. It packs a lot of power in a small form factor and multiple connectivity options that allow you to easily connect to various devices and peripherals.

AMD

AI-Prozessor

The UM890 Pro is powered by the latest generation of AMD AI processors - AMD Ryzen™ 9 8945HS processor with 8 cores and 16 threads. The processor clocks at 5.2GHz at maximum utilization and has integrated AMD Radeon™ 780M graphics for significantly improved NPU AI performance. An AMD Radeon™ 780M graphics card is also integrated. With these improvements, the performance is beyond your imagination. Translated with DeepL.com (free version)

Fast degradation supported

Uses DDR5 dual-channel memory with up to 5600MHz. Supports up to 48GB on a single memory stick, 96GB on the entire device and up to 8TB on the hard disk.

Cold Wave 2.2 cooling

The UM890 Pro is equipped with an active DDR and SSD cooler that reduces the DDR temperature by 60% and the SSD temperature by 40%! It also has a new, improved 6CM fan for longer life and lower noise. With a TDP of up to 70W in power mode, the noise level is only 43dB, 5dB less than the previous generation!

Interface

Multiple expansion

The UM890 Pro is equipped with two USB4 ports, one HDMI port and one DP port and supports up to four displays simultaneously. HDMI supports 48Gbps at up to 8K@60Hz / 4K@120Hz, DP1.4 supports up to 4K@240Hz, and USB4 has a built-in DP protocol that supports stunning resolutions up to 8K@60Hz / 4K@144Hz. Take multitasking and visual experience to the next level.

Dual USB4 & OCulink

Dual USB 4 ports with a maximum transfer speed of 40Gbps and up to 100W PD power support are not only suitable for data transfer, but can also be used to charge various devices. It is also equipped with a PCIe4.0 x4 OCulink interface, which is suitable for high-speed external devices, is more stable and faster, and improves productivity!

2.5G RJ45 & WiFi 6e

Dual 2.5G RJ45 network ports meet the requirements of soft routing and HTPC. At the same time, it is equipped with a WIFI6e wireless network card, which enables ultra-fast network speed and free networking.

Interface Demonstration
